Analog frequency meter (CB22531E)

Details
Written by: Newton C. Braga

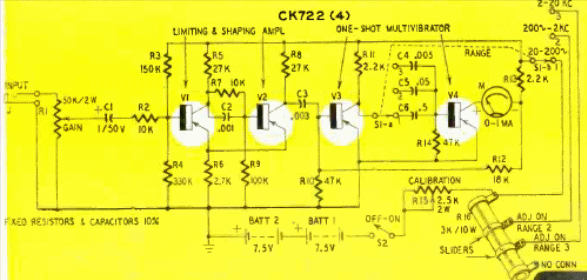

The assembly of this circuit was written in an article in Radio Electronics magazine from January 1958. The circuit uses 4 transistors of the time and has different frequency scales.
