Knight Transistor Test (CB22543E)

Details
Written by: Newton C. Braga

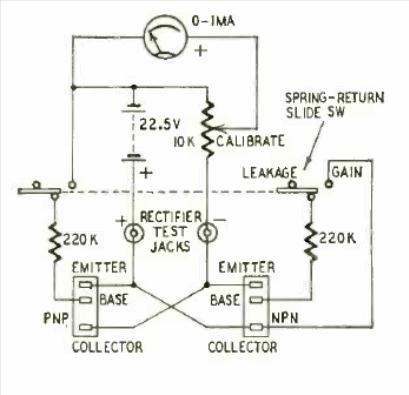

This circuit for testing commercial NPN and PNP transistors was found in Radio Electronics magazine from March 1958. The indicator is analog 1 mA.
