Photoelectric relay (CB23572E)

Details
Written by: Newton C. Braga

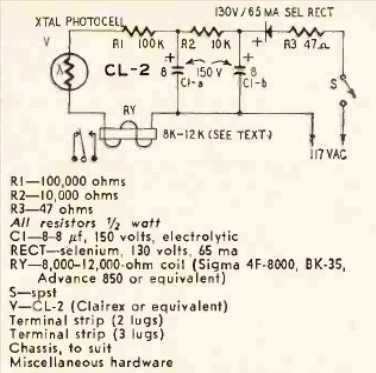

Found in a Radio Electronics magazine from September 1958, this circuit has an LDR powered by the power grid itself. The relay is a low current to high voltage sensitive type.
