Simple battery eliminator (CB23580E)

Details
Written by: Newton C. Braga

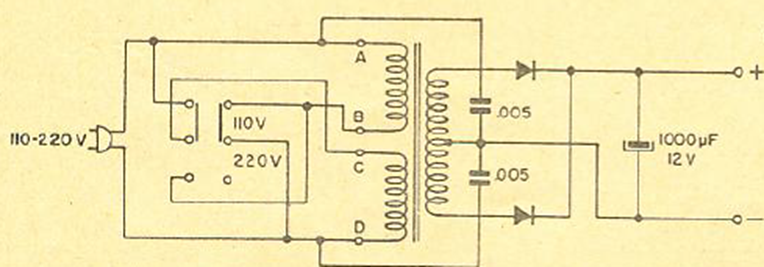

Without regulation, this basic circuit has the output current, and voltage determined by the transformer. The input can be 110 V and 220 V if the transformer used is of the indicated type.




| Clique na imagem para ampliar |
