Unijunction with bipolar transistors (CB23698E)

Details
Written by: Newton C. Braga

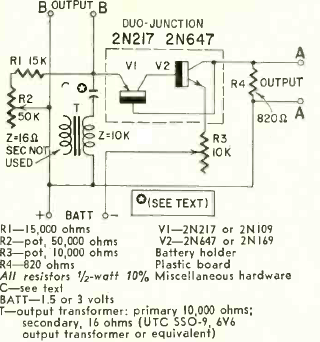

In the figure we have a circuit that simulates a unijunction transistor in an oscillator obtained from a Radio Electronics from October 1960. The circuit is powered by a 1.5 or 3 V battery.
