Voice Operated Relay (CB23744E)

Details
Written by: Newton C. Braga

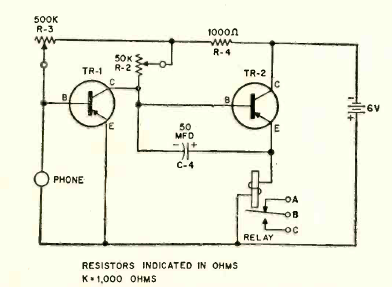

We found this circuit that was part of a teaching set in a Radio Electronics magazine from June 1961. The transistors are general-purpose germanium transistors at the time. The crystal earpiece serves as a microphone.
