Simple transistor test (CB22145E)

Details
Written by: Newton C. Braga

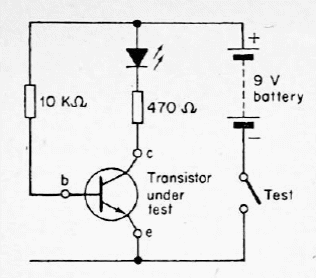

This circuit was found in old English documentation. We have the same version found in this section but obtained from different sources. The circuit is for NPN transistors.
