Current relay (CB22522E)

Details
Written by: Newton C. Braga

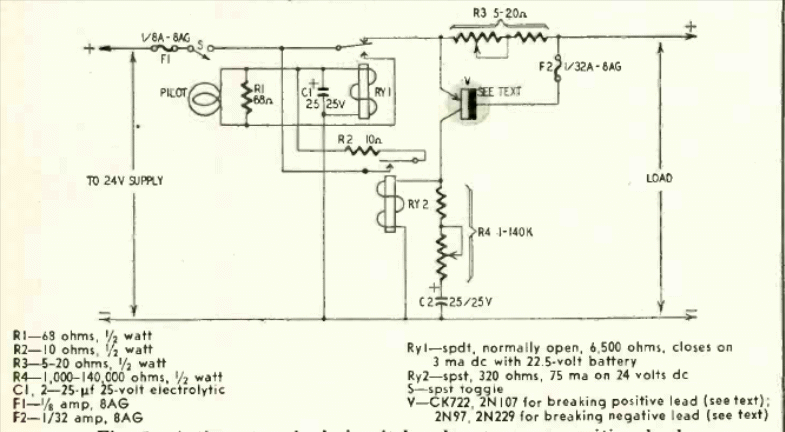

This protective circuit for power lines was found in a Radio Electronics from November 1957. The transistor used can be any general-purpose transistor such as the CK722.
