Improved voltage frequency converter (CB23911E)

Details
Written by: Newton C. Braga

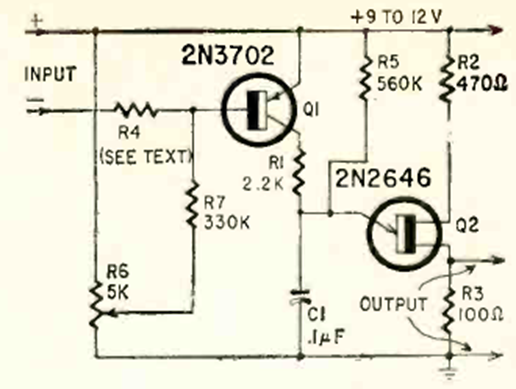

This circuit with the 2N2646 unijunction transistor appeared in Radio Electronics magazine in June 1968. The frequency range produced depends on C1, which can be changed.
