Optical switch with LDR and SCR (CB23964E)

Details
Written by: Newton C. Braga

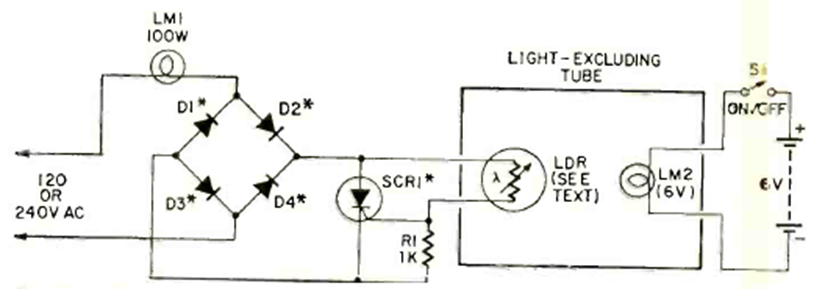

We found this circuit in the July 1969 Radio Electronics magazine. The circuit uses a coupler made with a lamp and an LDR. The power of the lamp determines the types of diodes.
