Flip Flop with transistors configured as SCRs (CB23688E)

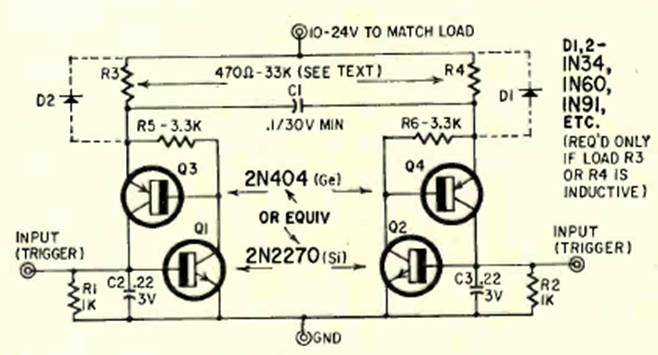

This interesting circuit from Radio Elecronics from October 1965 shows a flip-flop or bistable with SCRs simulated by bipolar transistors.
