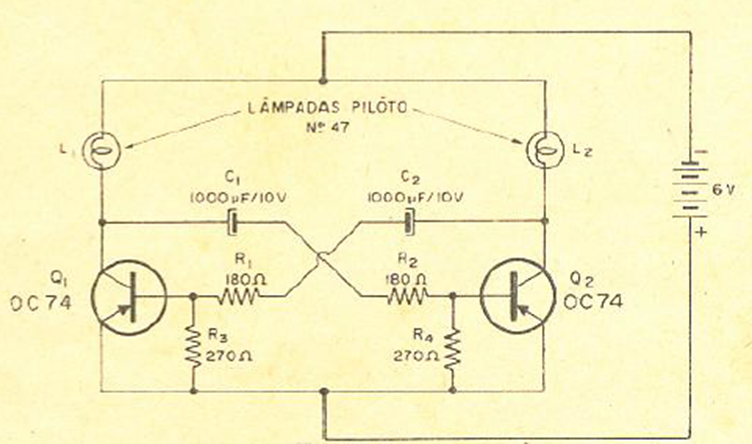

This flasher circuit consists of an astable multivibrator with the frequencies given by the capacitors. The circuit is from 1965 using light bulbs, but LEDs can be used. Power comes from 4 batteries.
| Clique na imagem para ampliar |
Flasher OC74 (CB23579E)
- Details
- Written by: Newton C. Braga
