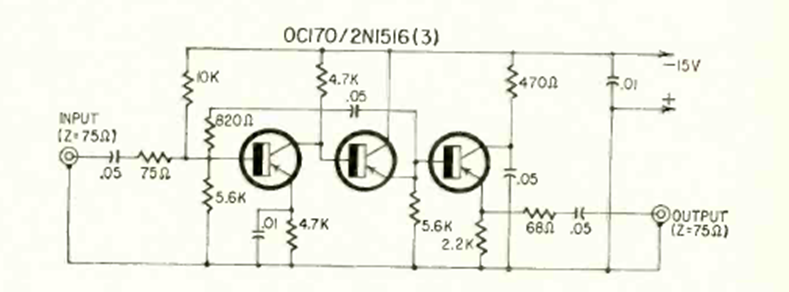

The frequency range of this circuit depends on the transistors used. The circuit is from a Radio Electronics magazine from June 1965. The transistors used are from the time with a maximum frequency of around 28 MHz.
| Clique na imagem para ampliar |
Broadband Booster (CB23667E)
- Details
- Written by: Newton C. Braga
