SCR Simulator (CB23687E)

Details
Written by: Newton C. Braga

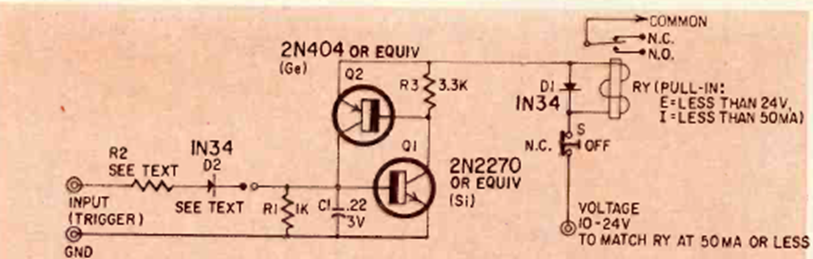

This circuit from a Radio Electronics from October 1965 shows how to obtain the action of an SCR when triggering a relay using two transistors. The relay is according to the circuit supply voltage.




| Clique na imagem para ampliar |
