Headphone amplifier (CB23708E)

Details
Written by: Newton C. Braga

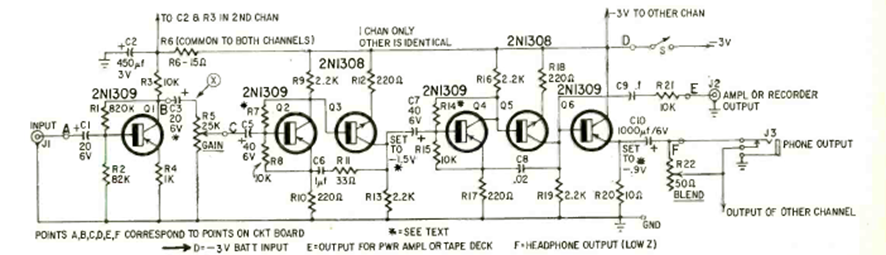

This very complex circuit in terms of the number of transistors was found in Radio Electronics from March 1966. The circuit is for low impedance headphones. The transistors are from the time.




| Clique na imagem para ampliar |
