Class B Amplifier (CB23697E)

Details
Written by: Newton C. Braga

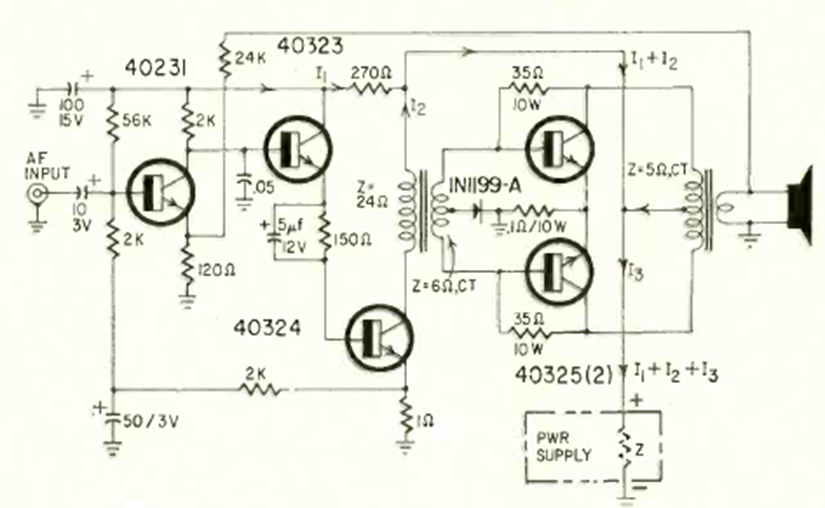

This circuit is from a Radio Electronics from February 1966. The circuit is of a type that was found in many applications at the time as output from radios, televisions and other equipment.




| Clique na imagem para ampliar |
