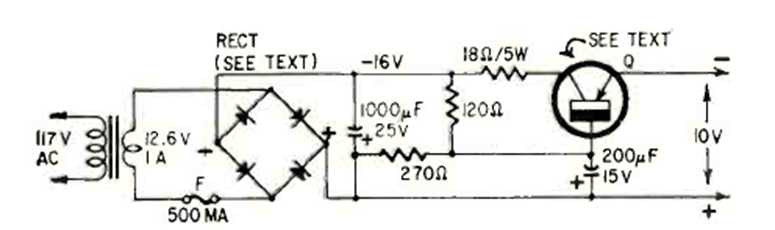

This 9 V battery eliminator was found in Radio Electronics magazine from June 1966. The transistor is of medium power and must be equipped with a small heat sink.
| Clique na imagem para ampliar |
9V Eliminator (CB23752E)
- Details
- Written by: Newton C. Braga
