LED VU (CB22157E)

Details
Written by: Newton C. Braga

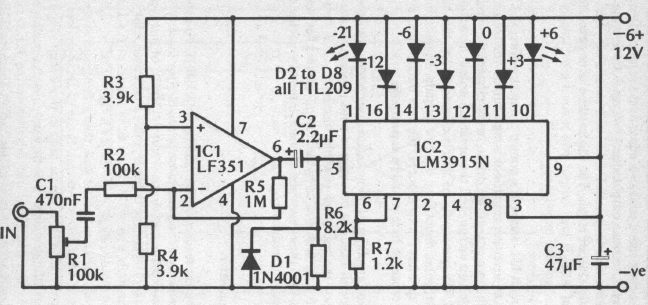

This circuit was found in a 1989 publication. The operational amplifier supports equivalents. The LED range can be expanded.




| Clique na imagem para ampliar |
