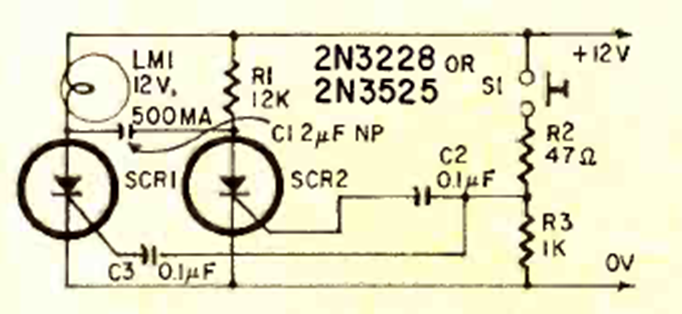

This bistable with two SCRs was found in the Radio Electronics magazine of June 1969. The circuit has a supply voltage according to the controlled load.
| Clique na imagem para ampliar |
On/off with SCR using 1 switch (CB23948E)
