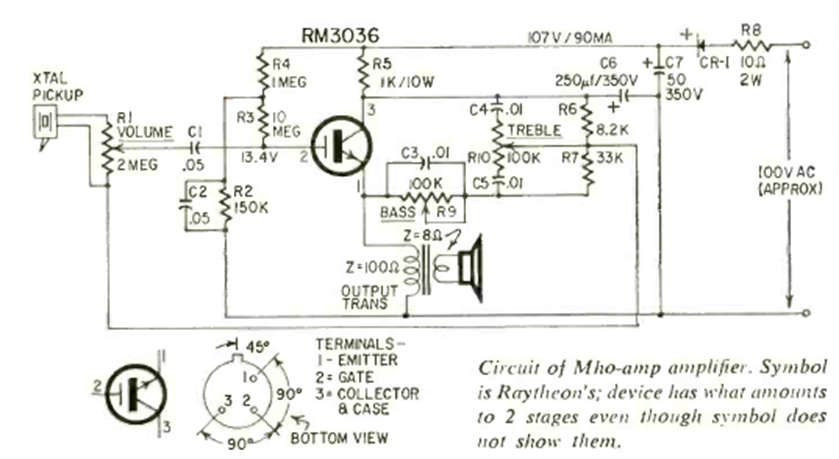

This is a circuit with a new (at the time) component released by Raytheon in 1965. The circuit uses a power field effect transistor, one of the first types used. The circuit is from a may1965 Radio Electronics.
| Clique na imagem para ampliar |
Amplifier with Mho Transistor (CB23657E)
- Details
- Written by: Newton C. Braga
