SCRs Test (CB23770E)

Details
Written by: Newton C. Braga

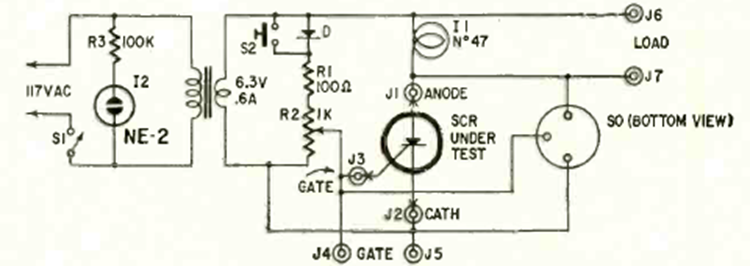

This circuit is from a March 1967 Radio Electronics. The circuit applies to general purpose SCRs such as the TIC106, C106 and others. The test is done by increasing the gate voltage to the trigger point.
