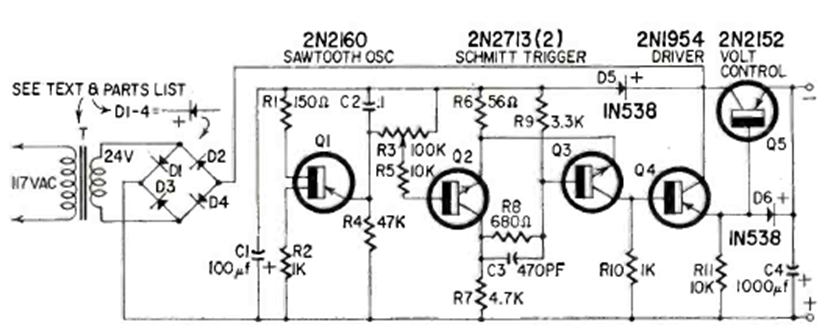

Using 5 transistors, one of which is a unijunction, this circuit was found in Radio Electronics magazine from June 1964. The transistors are from the time, but modern equivalents can be tested, including the unijunction transistor.
| Clique na imagem para ampliar |
