Transistor testing center (CB23768E)

Details
Written by: Newton C. Braga

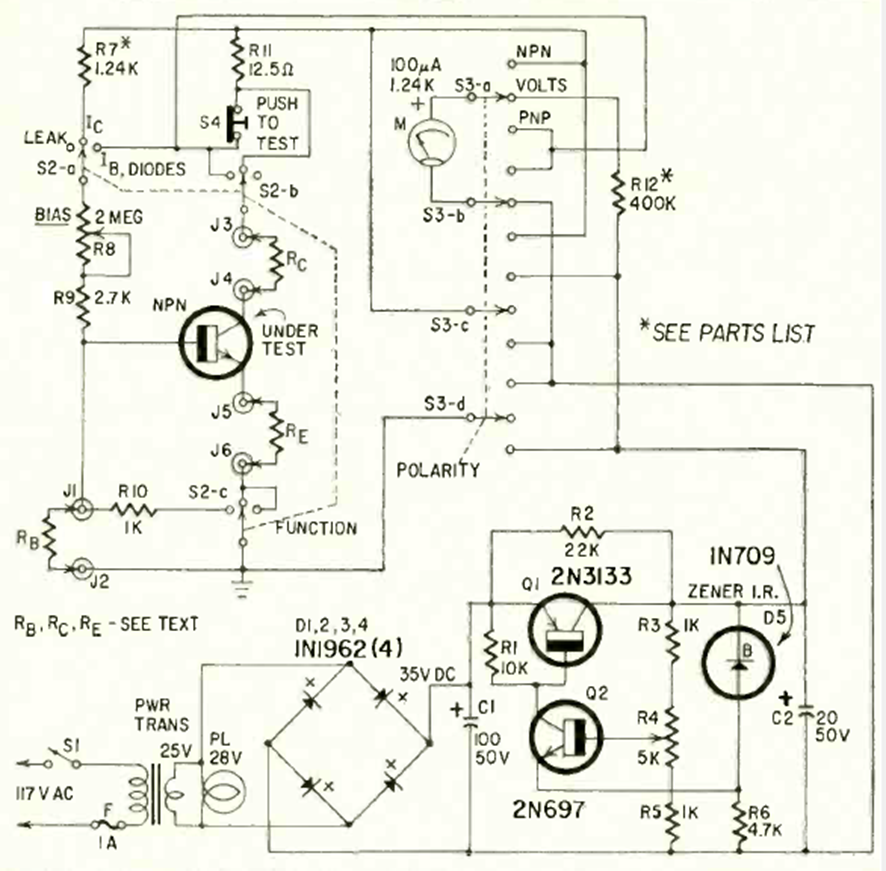

We found this test circuit in a March 1967 Radio Electronics. The circuit uses a zener-regulated supply and analog indicator.
