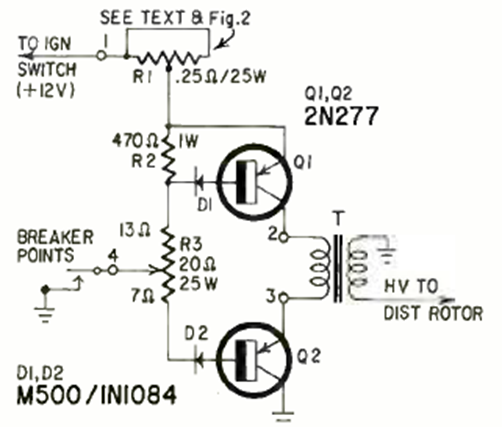

This assisted ignition circuit (which reduces the spark current) dates to the time when cars had spark plugs. The transistor performed the switching with better performance. The circuit is from a Radio Electronics from July 1963.
Simple transistorized ignition (CB23522E)
- Details
- Written by: Newton C. Braga
