Microphone preamplifier (CB23705E)

Details
Written by: Newton C. Braga

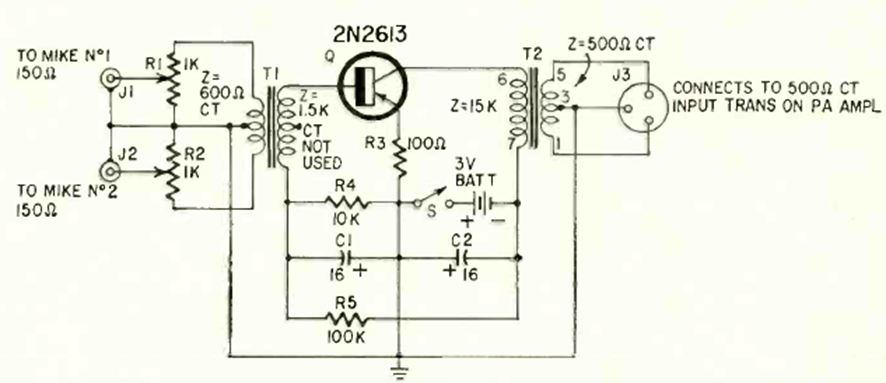

We found this circuit in a Radio Electronics from February 1966. The transistor is from the time and so are the transformers. The circuit is battery powered. Observe the impedances.
