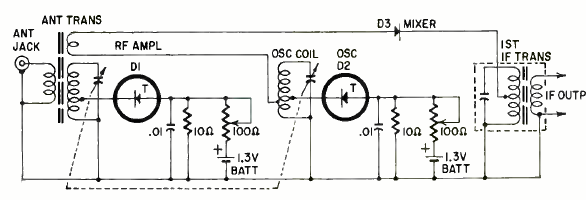

In the figure we have an input circuit for a receiver in which conventional transistors were replaced by tunnel diodes. The circuit is from a Radio Electronics from November 1962.
Tunnel diode input stage (CB23851E)
- Details
- Written by: Newton C. Braga
