Tunnel diode curve tracer (CB23704E)

Details
Written by: Newton C. Braga

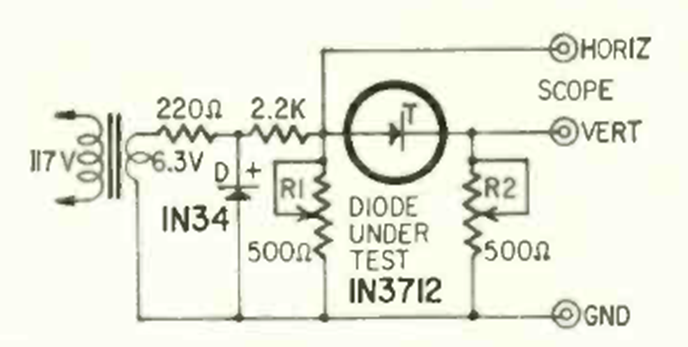

This circuit was found in a Radio Electronics from February 1966. With it it is possible to trace the curve of a tunnel diode visualizing it on an oscilloscope.
