60's crystal radio (CB22171E)

Details
Written by: Newton C. Braga

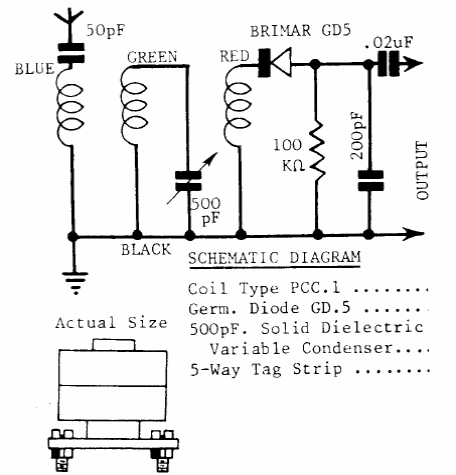

Found in an English publication from the 1960s, this circuit uses period components, including the commercial grade coil.
