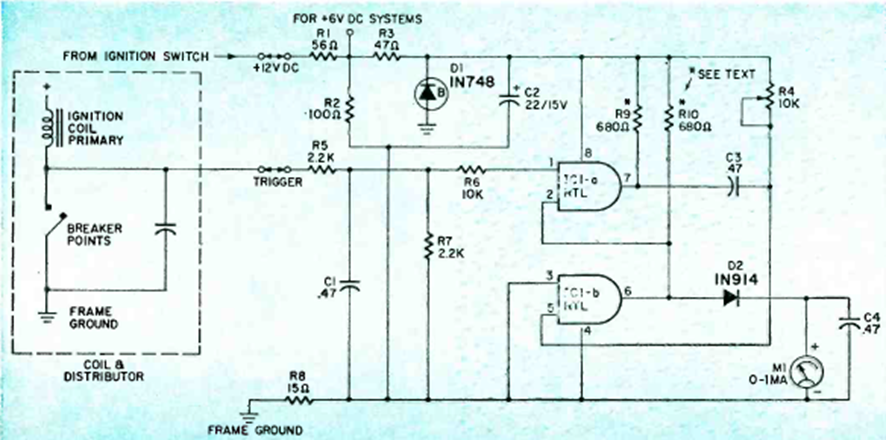

This circuit from a Radio Electronics magazine from June 1969 already shows the use of the newly released TTL technology. The circuit is for a tachometer with an analog instrument for cars with platinum plates.
| Clique na imagem para ampliar |
Tachometer (CB23955E)
- Details
- Written by: Newton C. Braga
