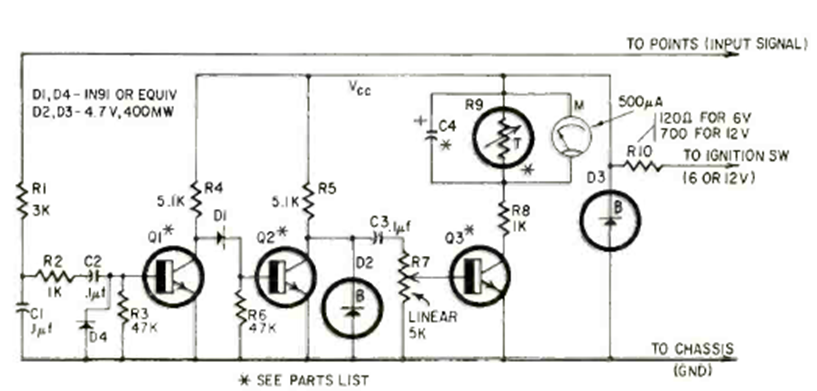

This circuit was found in Radio Electronics magazine from September 1965. It uses a thermal compensation system for the indicating instrument. The circuit is for period cars that use contact breakers in the ignition system.
| Clique na imagem para ampliar |
