3909 Oscillator (CB24719E)
- Details
- Written by: Newton C. Braga

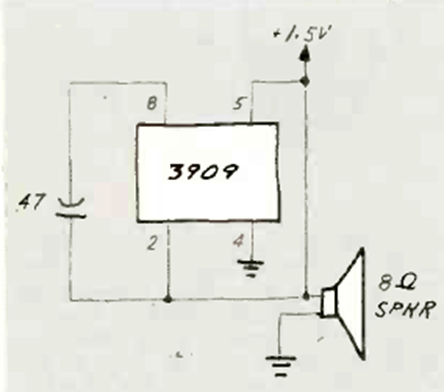

This is the basic version of a small audio oscillator with the LM3909. The circuit must be powered with 1.5V and the capacitor determines the frequency of the signal.
