Super Siren 555 (CB24693E)

Details
Written by: Newton C. Braga

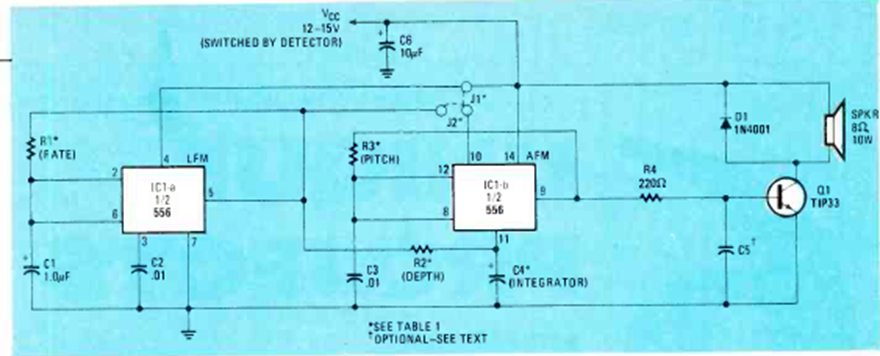

We found this circuit in the April 1982 Radio Electronics magazine. It contains a good power stage whose transistor must be mounted on a good heat sink.




| Clique na imagem para ampliar |
