Blitzmeter (CB24278E)

Details
Written by: Newton C. Braga

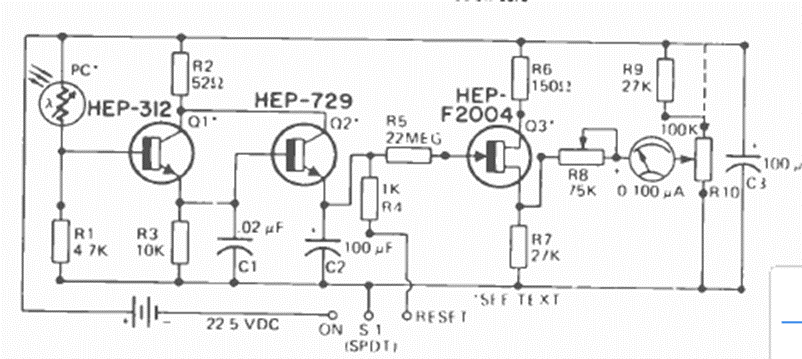

Under this name, Radioelectronics magazine published in the January 1974 issue a light exposure meter for photographers. The circuit used general-purpose transistors and a FET, with an LDR sensor.




| Clique na imagem para ampliar |
