Biofeedback 555 (CB24876E)

Details
Written by: Newton C. Braga

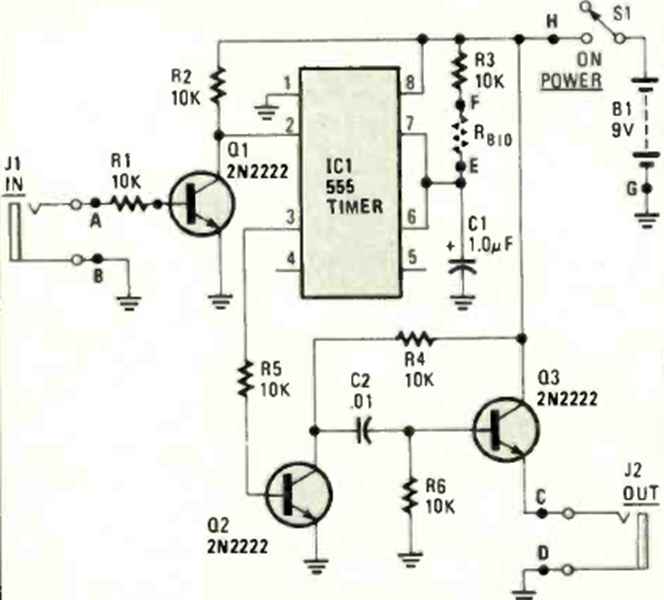

This sensitive bio-monitoring circuit was found in the December 1984 issue of Radio Electronics magazine. The circuit is powered by a 9 V battery and uses a low-impedance headphone output.
