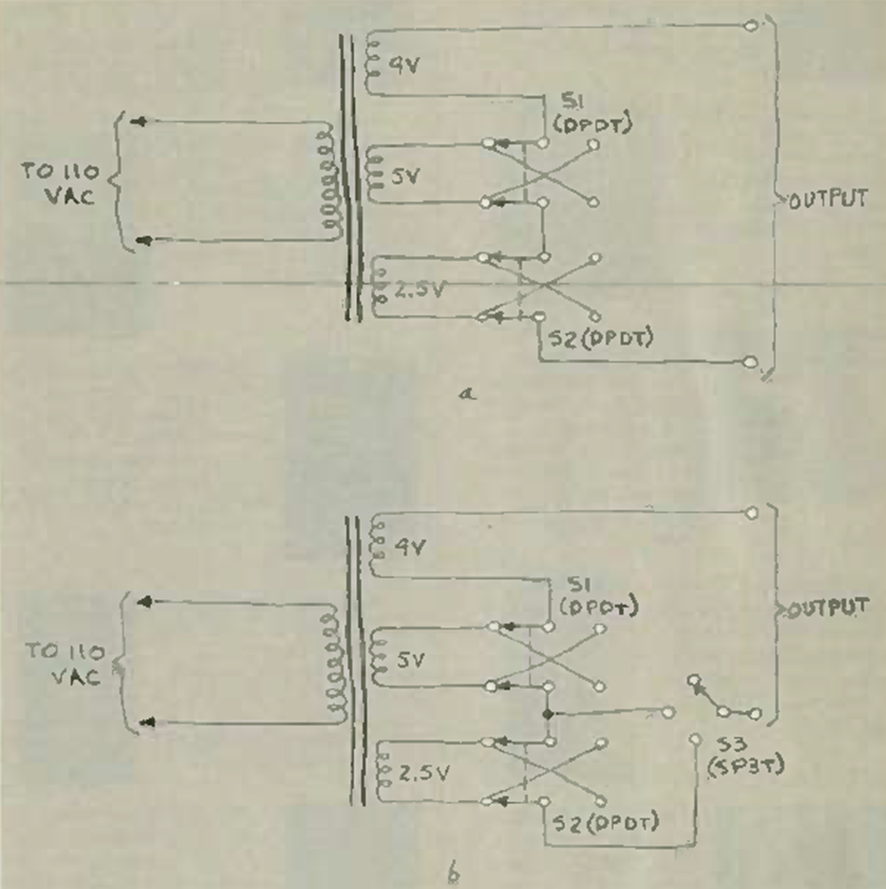

The figure shows how to use a 3-winding transformer to switch outputs with different voltages by adding the voltages of the windings. The circuit can be modified to be used with transformers with more windings.
