555 Audio Oscillator (CB24700E)
- Details
- Written by: Newton C. Braga

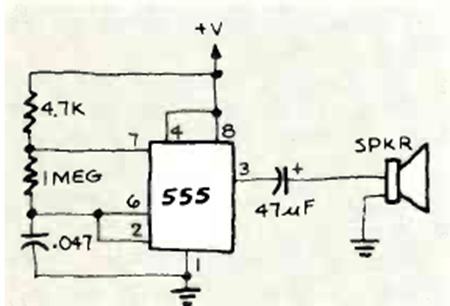

This simple oscillator can use 8-ohm or close to 8-ohm speakers. The circuit is from Radio Electronics from May 1982. The frequency can be changed by changing the 1 M resistor.
