CMOS Amplifier (CB24798E)

Details
Written by: Newton C. Braga

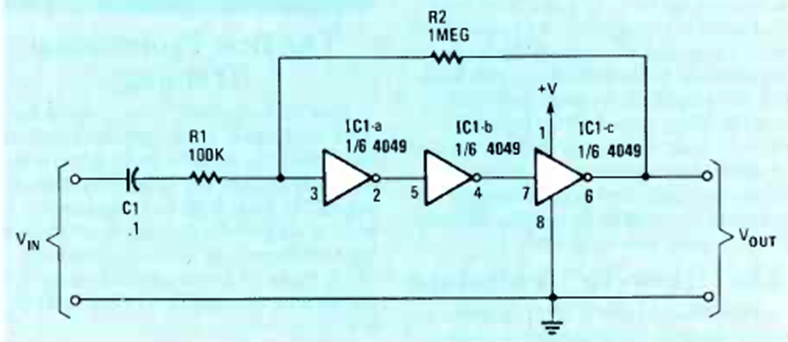

The figure shows how to use CMOS inverters as amplifiers. The circuit is from a Radio Electronics from April 1984. The supply voltage can be between 3 and 12 V.




| Clique na imagem para ampliar |
