Vox CA3055 (CB24260E)

Details
Written by: Newton C. Braga

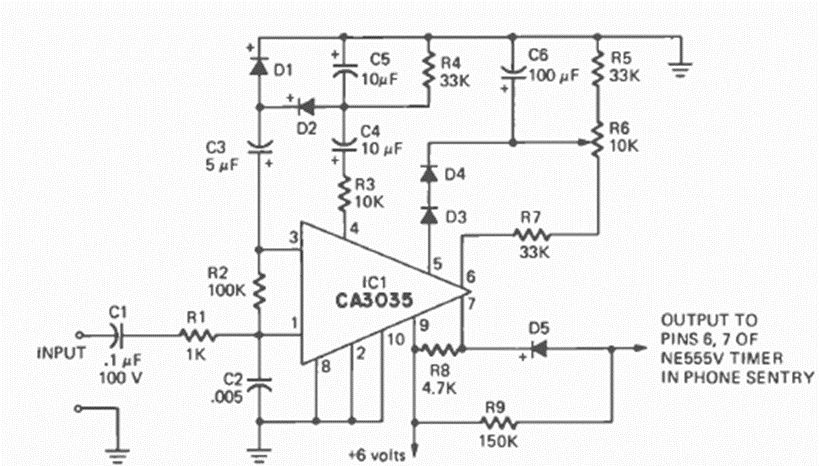

This old voice circuit suitable for telephones of the time was found in a Radio Electronics from September 1973. The circuit is powered by a voltage of 7 V.




| Clique na imagem para ampliar |
