Motor Control L272 (CB24879E)

Details
Written by: Newton C. Braga

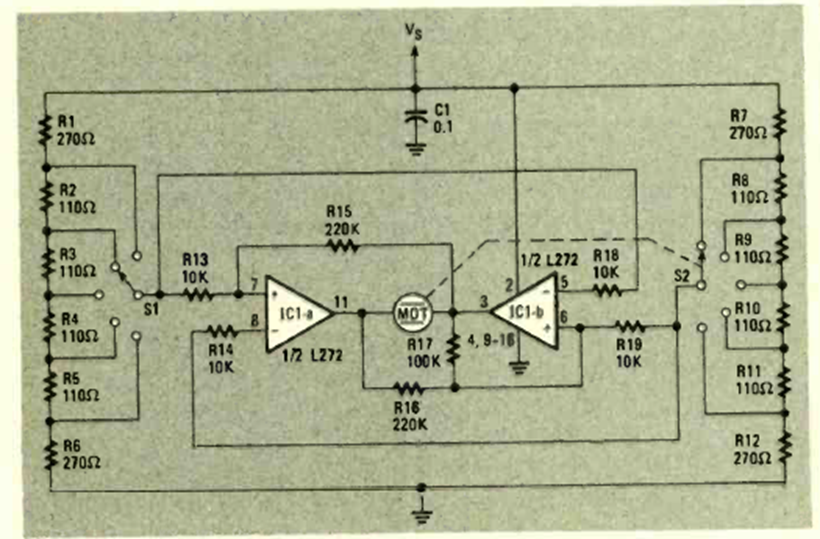

This DC motor control uses a power operational amplifier. We found it in December 1984 in the Radio Electronics magazine. The amplifier must be mounted on a heat sink and the maximum current is 1 A.
