High Power Voltage Inverter (CB24702E)

Details
Written by: Newton C. Braga

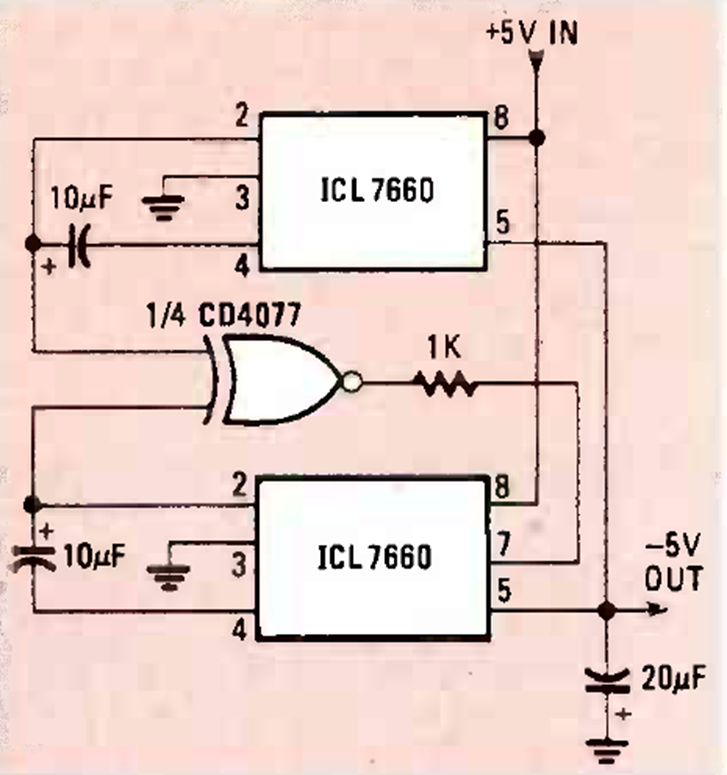

With this circuit it is possible to obtain a voltage of -5 V from a 5 V source. The circuit is from Radio Electronics from May 1982. The maximum current is around 80 mA.






| Clique na imagem para ampliar |
