TTL Oscillator (CB24223E)

Details: Written by: Newton C. Braga

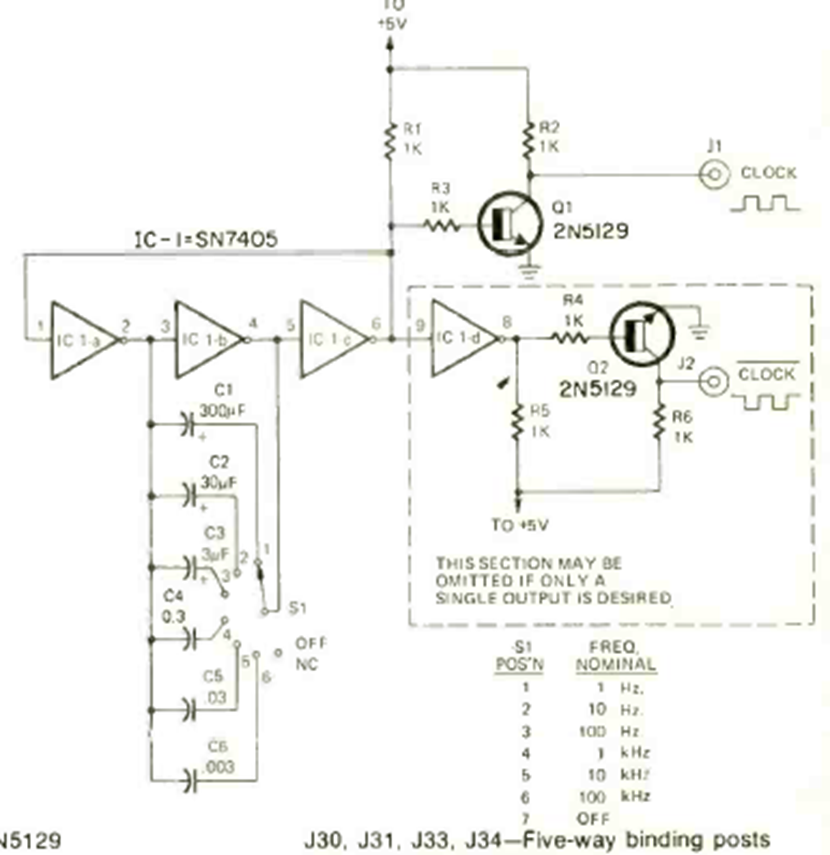

We found this circuit in the Radio Electronics magazine of December 1972. It generates signals in 6 frequency bands, being indicated for experimental applications with TTL circuits.
