250W Amplifier (CB24275E)

Details
Written by: Newton C. Braga

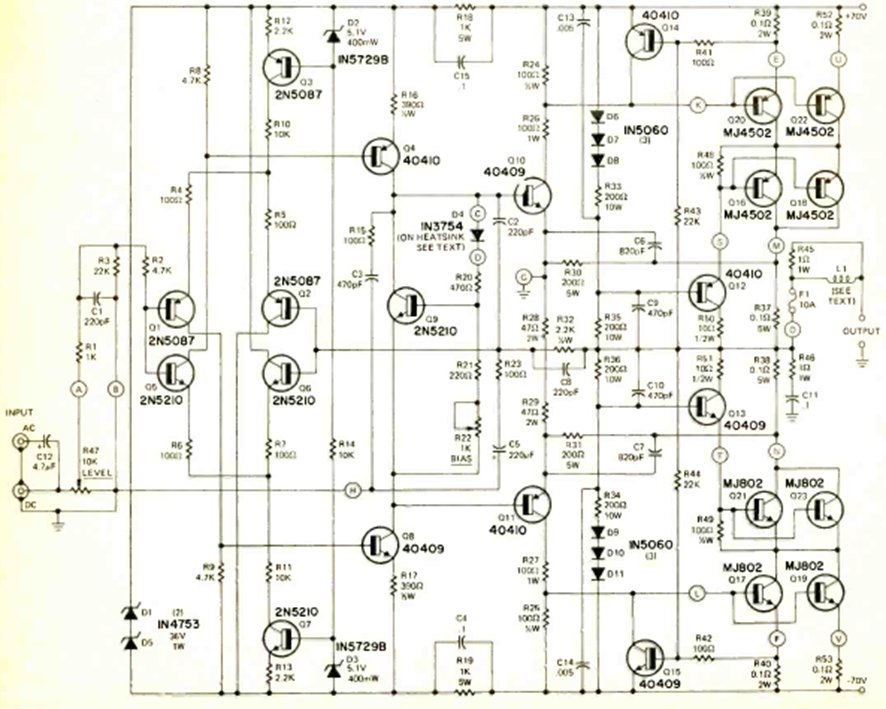

This powerful high-fidelity amplifier was described in an article in Radio Electronics magazine in December 1973. Note the use of 8 high-power transistors that must be mounted on excellent heat sinks.
