Sound Activated Dimmer (CB24602E)

Details
Written by: Newton C. Braga

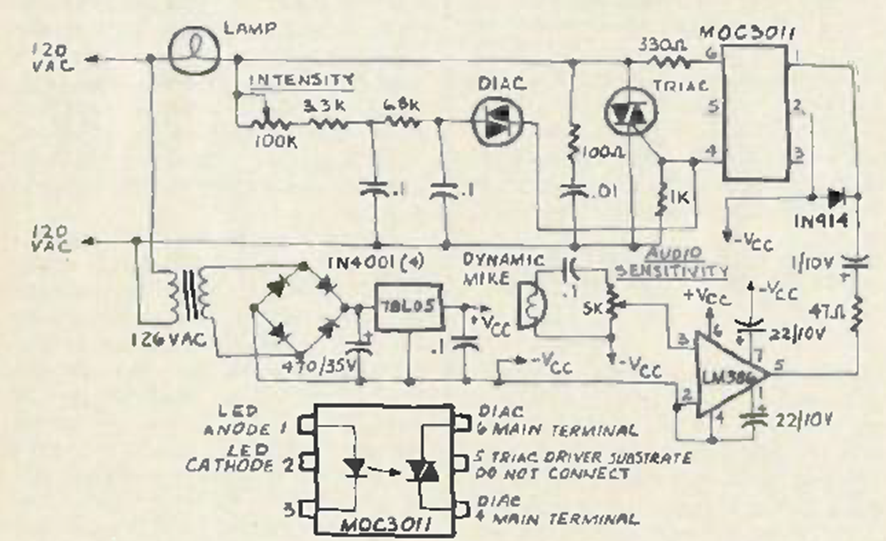

This circuit for incandescent lamps was found in the January 1980 Radio Elecronics magazine. The sensitivity can be controlled by a potentiometer and the microphone used is of the dynamic type.




| Clique na imagem para ampliar |
