Field Strength Meter (CB24526E)

Details
Written by: Newton C. Braga

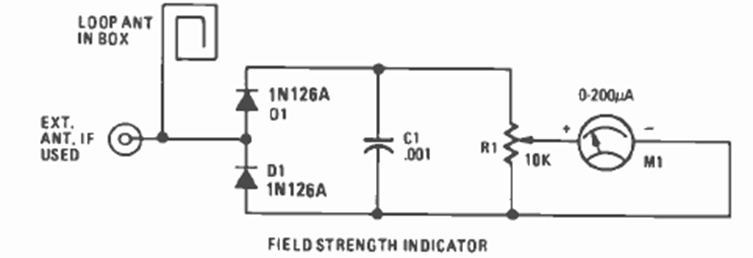

This simple analog instrument circuit was found in the October 1977 issue of Radio Electronics magazine. The diodes are germanium for greater sensitivity.
