Car Light Reminder (CB24315E)

Details
Written by: Newton C. Braga

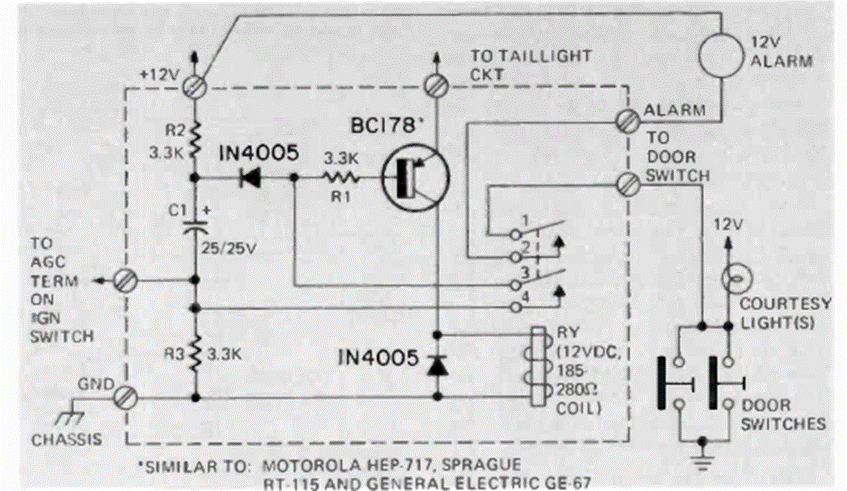

This circuit reminds the driver when he removes the keys from the ignition, leaving the lights on. The circuit is from an August 1974 Radio Electronics magazine.




| Clique na imagem para ampliar |
