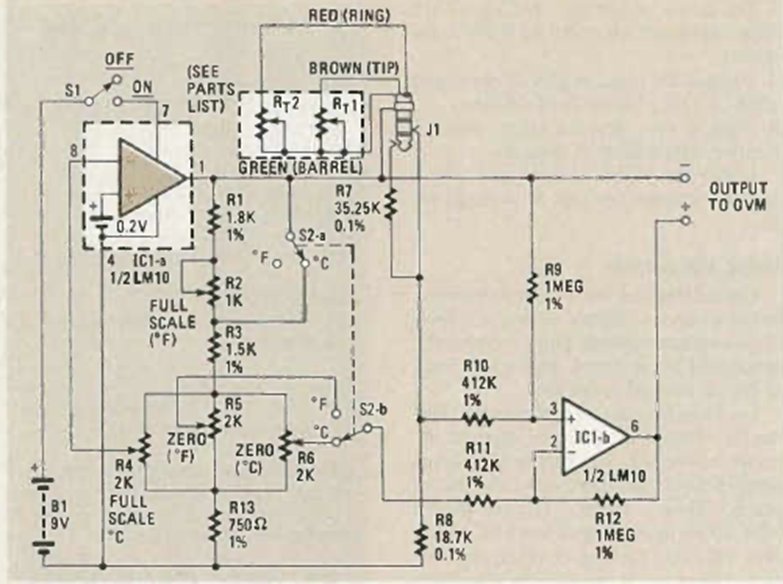

The temperature range of this circuit is different from the previous one, while maintaining the same configuration. The circuit is from a Radio Electronics from June 1985.
| Clique na imagem para ampliar |
Temperature adapter from -50 to +50º C (CB24928E)
- Details
- Written by: Newton C. Braga
