Socket control (CB24880E)

Details
Written by: Newton C. Braga

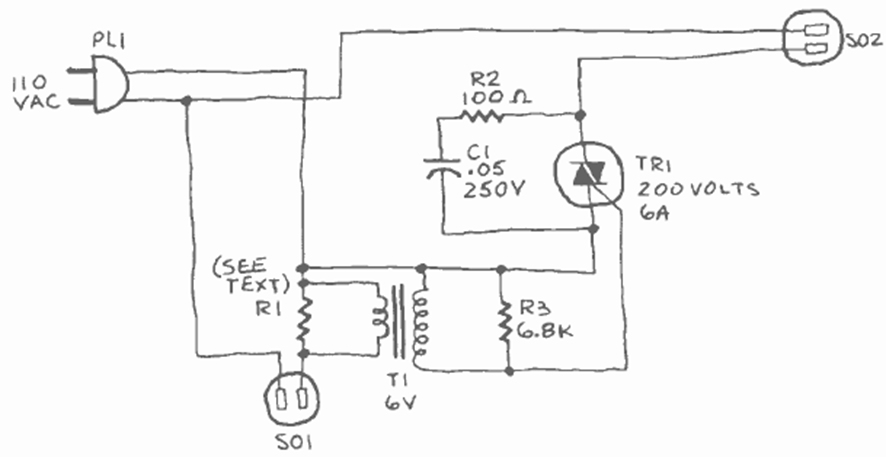

The idea of ​​this circuit is that when the device in SO1 is turned on, the device connected to SO2 automatically receives power. The circuit is from Radio Electronics from January 1985.
