Biofeedback Thermometer (CB24401E)

Details
Written by: Newton C. Braga

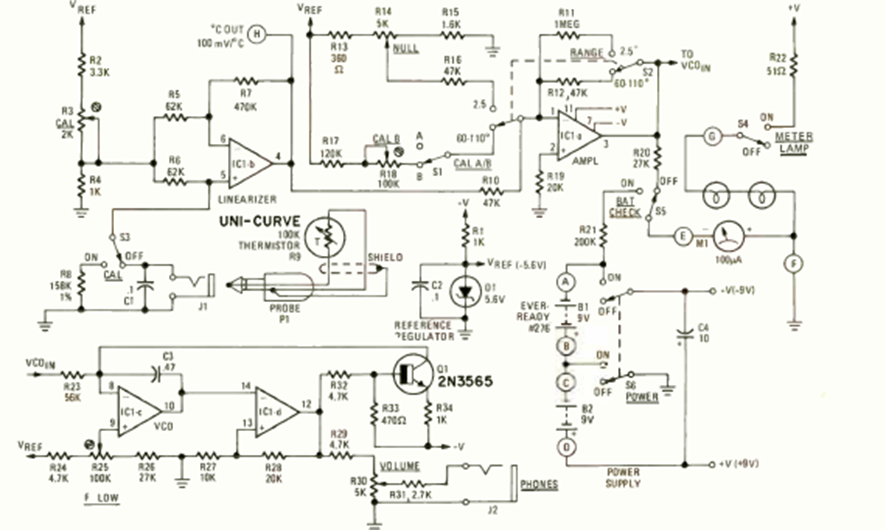

This circuit was found in February 1976, Radio Electronics magazine. The circuit is quite sophisticated using a fast-acting (thermometric) sensor and analog indicator.
