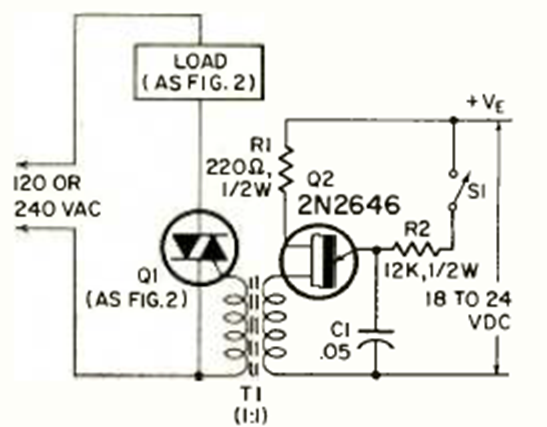

This triac control circuit with transformer and unijunction transistor was found in the June 1970 issue of Radio Electronics magazine. The transformer has a 1 to 1 turns ratio.
Triac Triggering with Transformer (CB24043E)
- Details
- Written by: Newton C. Braga
