Overvoltage Switch CA3140 (AC)

Details
Written by: Newton C. Braga

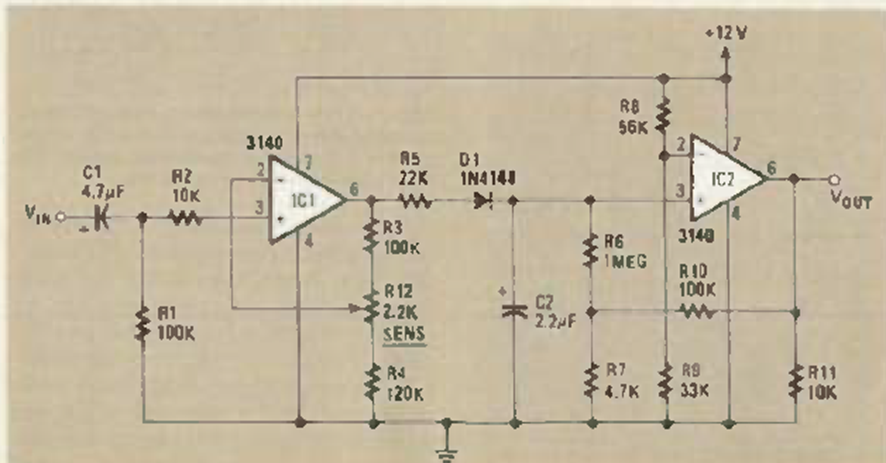

This circuit was found in the June 1986 issue of Radio Electronics magazine. It is based on two operational CA3140s and has a trigger voltage adjustment.
